Technology
A simple three-layer system built for field conditions
GanSystems follows a clear flow: sensors and controllers in the fish farm, cloud processing in the middle, and a dashboard for farmers and operators.
- 01
IoT Device Layer
ESP32-based field controllers gather water-quality data and manage local actions such as draining and refilling water when conditions require intervention.
- 02
Cloud Platform Layer
Data is synced and processed through a cloud platform that handles connectivity, real-time telemetry, intelligent analysis, and automation logic.
- 03
Dashboard Layer
The dashboard turns this data into useful views for monitoring, remote control, and reporting without adding unnecessary complexity.
How it works
From a single reading to a corrective action
- 01
Sense
In the pond
Sensors collect important pond and water-condition data.
- 02
Connect
ESP32 controllers
Devices transmit telemetry to the GanSystems platform.
- 03
Monitor
Dashboard
Operators see current conditions and device information through the dashboard.
- 04
Analyze
Platform
GanSystems turns raw telemetry into clearer operational signals.
- 05
Act
Back at the pond
Farmers or connected controllers can respond to changing conditions, including supported drain and refill automation.

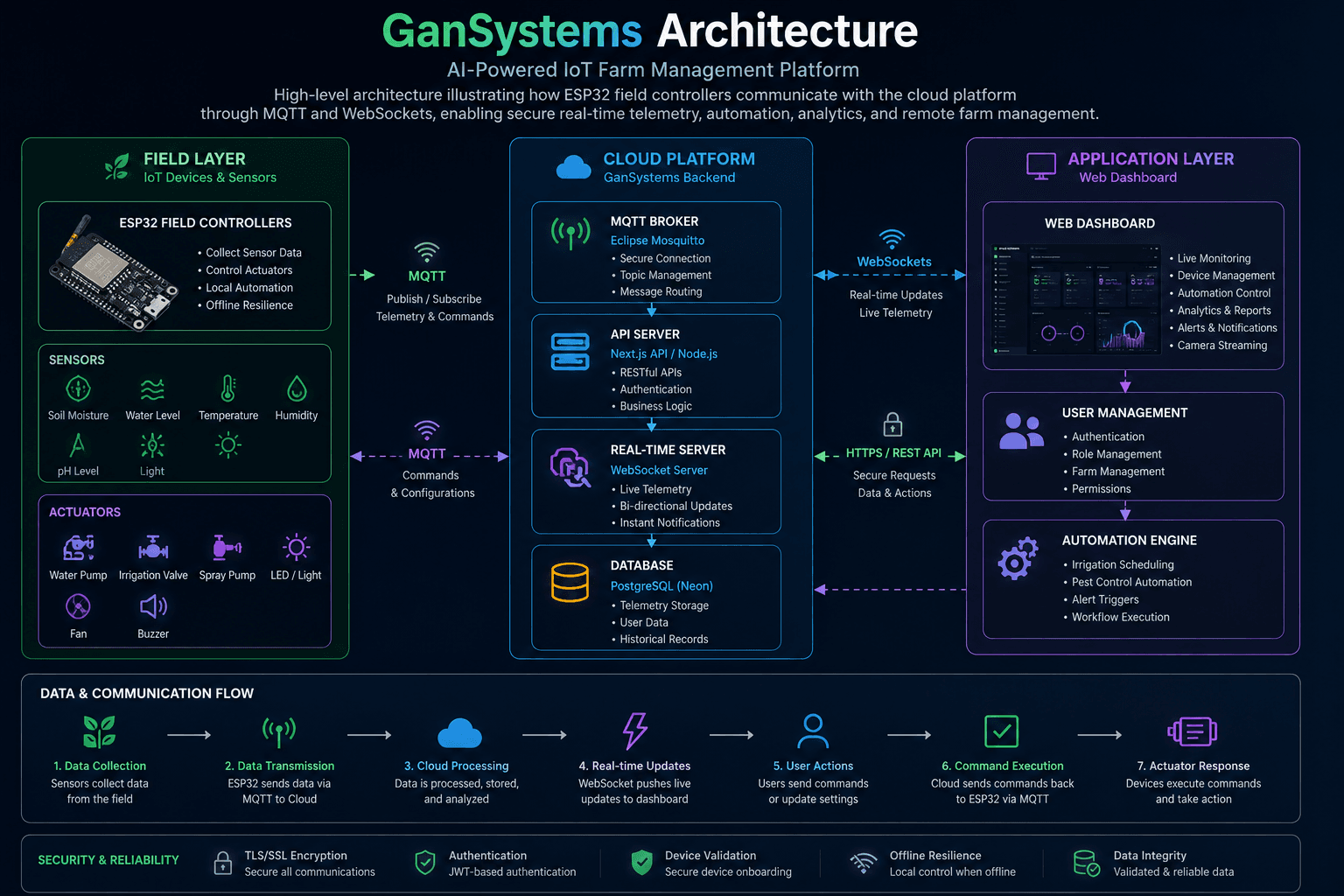

System architecture
How devices, cloud, and dashboard connect
How devices, the cloud platform, and the dashboard connect through MQTT and WebSockets.
